SHOP: Base: ANSI 5 , dimensions: 7 x 28 mm (Filament)

0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F  G  H  I  J  K  L  M  N  O  P  Q  R  S  T  U  V  W  X  Y  Z

[30]

Lamps for display and signal purposes

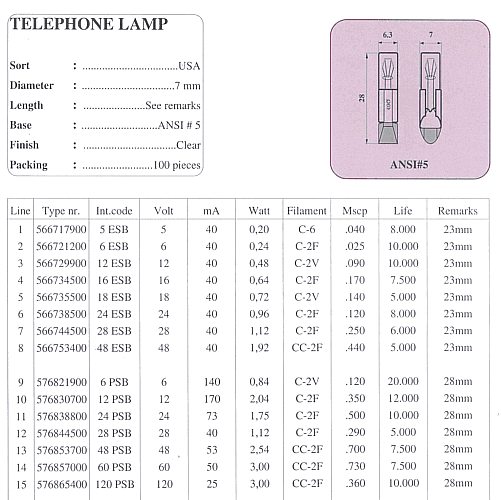

Datenblatt: IMG-789

566717900 "NA" (64142) * Telefonlampe, 5 V, 40 mA, Sockel: ANSI, 0.20 W, Mscp .040, filament C-6, life 8000, Int.code 5 ESB, remarks 23mm   on demand request

566721200 (67520) * Telefonlampe, 6 V, 40 mA, Sockel: ANSI, 0.24 W, Mscp .025, filament C-2F, life 10000, Int.code 6 ESB, remarks 23mm   on demand request

566729900 (67521) * Telefonlampe, 12 V, 40 mA, Sockel: ANSI, 0.48 W, Mscp .090, filament C-2V, life 10000, Int.code 12 ESB, remarks 23mm   on demand request

566734500 (67522) * Telefonlampe, 16 V, 40 mA, Sockel: ANSI, 0.64 W, Mscp .170, filament C-2F, life 7500, Int.code 16 ESB, remarks 23mm   on demand request

566735500 (67523) * Telefonlampe, 18 V, 40 mA, Sockel: ANSI, 0.72 W, Mscp .140, filament C-2V, life 5000, Int.code 18 ESB, remarks 23mm   on demand request

566738500 (67524) * Telefonlampe, 24 V, 40 mA, Sockel: ANSI, 0.96 W, Mscp .120, filament C-2F, life 8000, Int.code 24 ESB, remarks 23mm   on demand request

566744500 (67525) * Telefonlampe, 28 V, 40 mA, Sockel: ANSI, 1.12 W, Mscp .250, filament C-2F, life 6000, Int.code 28 ESB, remarks 23mm   on demand request

566753400 (67526) * Telefonlampe, 48 V, 40 mA, Sockel: ANSI, 1.92 W, Mscp .440, filament CC-2F, life 5000, Int.code 48 ESB, remarks 23mm   on demand request

576821900 (67527) * Telefonlampe, 6 V, 140 mA, Sockel: ANSI, 0.84 W, Mscp .120, filament C-2V, life 20000, Int.code 6 PSB, remarks 28mm   on demand request

576830700 (67528) * Telefonlampe, 12 V, 170 mA, Sockel: ANSI, 2.04 W, Mscp .350, filament C-2F, life 12000, Int.code 12 PSB, remarks 28mm   on demand request

576838800 (67529) * Telefonlampe, 24 V, 73 mA, Sockel: ANSI, 1.75 W, Mscp .500, filament C-2F, life 10000, Int.code 24 PSB, remarks 28mm   on demand request

576844500 (67530) * Telefonlampe, 28 V, 40 mA, Sockel: ANSI, 1.12 W, Mscp .290, filament C-2F, life 5000, Int.code 28 PSB, remarks 28mm   on demand request

576853700 (67531) * Telefonlampe, 48 V, 53 mA, Sockel: ANSI, 2.54 W, Mscp .700, filament CC-2F, life 7500, Int.code 48 PSB, remarks 28mm   on demand request

576857000 (67532) * Telefonlampe, 60 V, 50 mA, Sockel: ANSI, 3.00 W, Mscp .730, filament CC-2F, life 7500, Int.code 60 PSB, remarks 28mm   on demand request

576865400 (67533) * Telefonlampe, 120 V, 25 mA, Sockel: ANSI, 3.00 W, Mscp .360, filament CC-2F, life 10000, Int.code 120 PSB, remarks 28mm   on demand request
